THE CVR10

The Concaver CVR10 combines a multi-spoke design with a sharp, technical character. Its precisely machined spokes create a dynamic and lightweight appearance, while refined detailing adds depth and complexity. A perfect choice for drivers looking for modern elegance with a technical edge.

Choosing Concaver rims, you can be sure of their uniqueness.
Every Concaver model is officially patented in the European Union Intellectual Property Office.
You can verify it here.

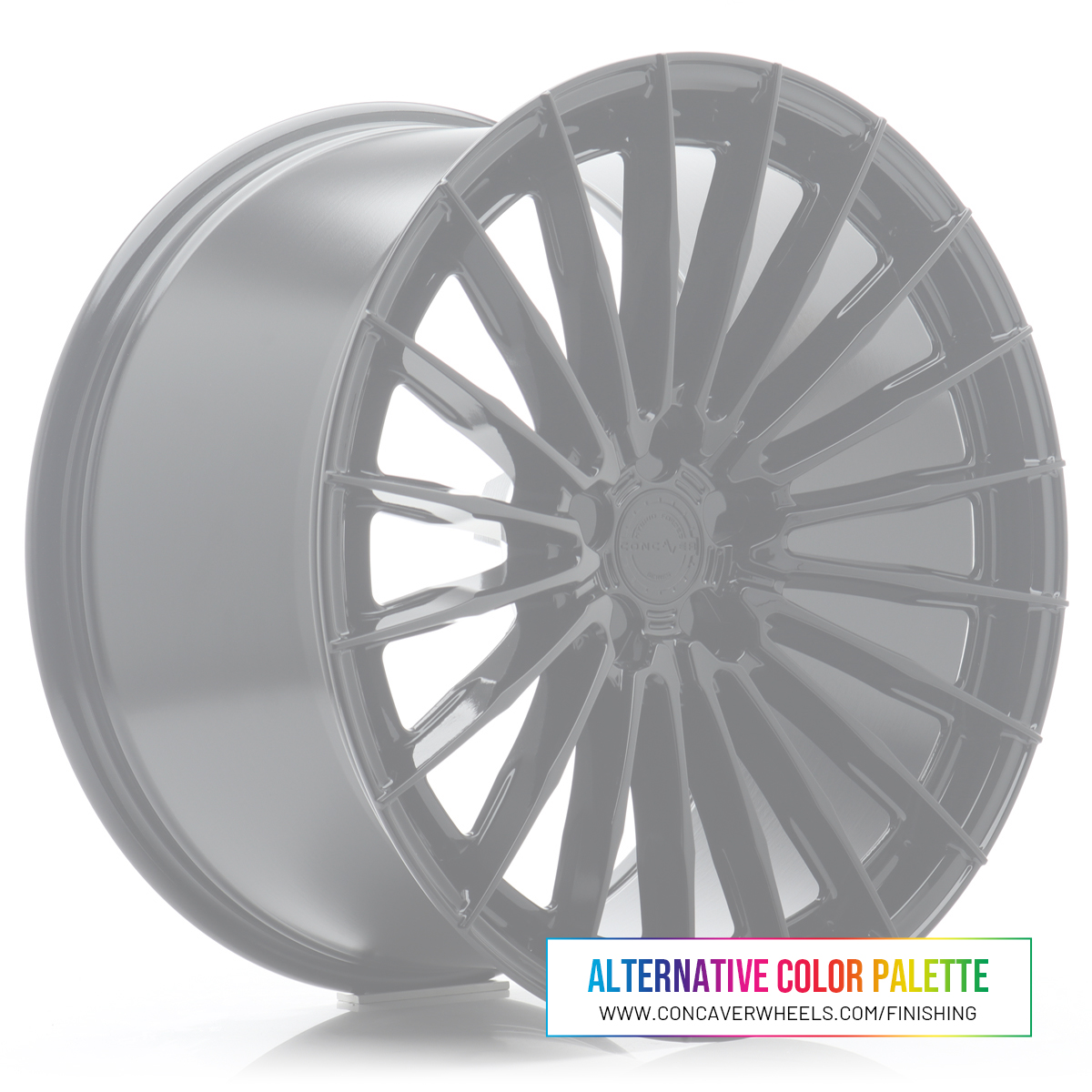

STANDARD FINISHES

CVR10 TECHNICAL SPECIFICATION

At Concaver, we are well aware of the differences between specific car types and models. Having all the different parameters and details in mind, we go the extra mile to ensure that our wheels can be crafted to fit almost any car on the market. By utilising both the experienced workforce and the cutting-edge technologies available in Concaver wheel factory, we are able to offer custom-tailored solutions to guarantee a perfect fit on vehicle, regardless of its specification.

  • CHOOSE SIZE >

  • 19"
  • 20"
  • 21"
  • 22"

  • CONCAVE PROFILE

    CONCAVE

    1. PERFORMANCE
    2. PERFORMANCE
    3. PERFORMANCE
    4. DEEP

  • 3D

    3D

  • WHEEL SIZE

    SIZE

    1. 19 x 8
    2. 19 x 8,5
    3. 19 x 9
    4. 19 x 9,5

  • OFFSET RANGE

    OFFSET

    1. 20 - 40
    2. 20 - 45
    3. 20 - 51
    4. 20 - 45

  • MAX LOAD

    1. 725 KG
    2. 725 KG
    3. 725 KG
    4. 725 KG

  • SUGGESTED RETAIL PRICE

    SRP

    1. 425 EUR
    2. 450 EUR
    3. 475 EUR
    4. 500 EUR

  • BOLT PATTERN

    1.
    2. ALL PCD`S BETWEEN 5x108 - 5x120
    3.
    4.

PCD OPTION:5x108 | 5x110 | 5x112 | 5x114.3 | 5x115 | 5x120

19" MAX LOAD PER WHEEL: 725 KG

  • CONCAVE PROFILE

    CONCAVE

    1. PERFORMANCE
    2. PERFORMANCE
    3. PERFORMANCE
    4. MID
    5. MID
    6. MID

  • 3D

    3D

  • WHEEL SIZE

    SIZE

    1. 20 x 8
    2. 20 x 8,5
    3. 20 x 9
    4. 20 x 9
    5. 20 x 9,5
    6. 20 x 10

  • OFFSET RANGE

    OFFSET

    1. 20 - 40
    2. 20 - 45
    3. 20 - 51
    4. 20 - 35
    5. 22 - 44
    6. 20 - 48

  • MAX LOAD

    1. 800 KG
    2. 800 KG
    3. 800 KG
    4. 800 KG
    5. 800 KG
    6. 800 KG

  • SUGGESTED RETAIL PRICE

    SRP

    1. 525 EUR
    2. 550 EUR
    3. 575 EUR
    4. 575 EUR
    5. 600 EUR
    6. 625 EUR

  • BOLT PATTERN

    1.
    2.
    3. ALL PCD`S BETWEEN 5x108 - 5x130
    4.
    5.
    6.

PCD OPTION:5x108 | 5x110 | 5x112 | 5x114.3 | 5x115 | 5x120 | 5x130

20" MAX LOAD PER WHEEL: 800 KG

  • CONCAVE PROFILE

    CONCAVE

    1. PERFORMANCE
    2. DEEP
    3. DEEP
    4. DEEP

  • 3D

    3D

  • WHEEL SIZE

    SIZE

    1. 21 x 9
    2. 21 x 9,5
    3. 21 x 10
    4. 21 x 10,5

  • OFFSET RANGE

    OFFSET

    1. 10 - 52
    2. 0 - 35
    3. 10 - 40
    4. 10 - 46

  • MAX LOAD

    1. 980 KG
    2. 980 KG
    3. 980 KG
    4. 980 KG

  • SUGGESTED RETAIL PRICE

    SRP

    1. 650 EUR
    2. 675 EUR
    3. 700 EUR
    4. 725 EUR

  • BOLT PATTERN

    1.
    2. ALL PCD`S BETWEEN 5x108 - 5x130
    3.
    4.

PCD OPTION:5x108 | 5x110 | 5x112 | 5x114.3 | 5x115 | 5x120 | 5x130

21" MAX LOAD PER WHEEL: 980 KG

  • CONCAVE PROFILE

    CONCAVE

    1. PERFORMANCE
    2. PERFORMANCE
    3. DEEP
    4. PERFORMANCE
    5. DEEP
    6. DEEP
    7. DEEP

  • 3D

    3D

  • WHEEL SIZE

    SIZE

    1. 22 x 9
    2. 22 x 9,5
    3. 22 x 9,5
    4. 22 x 10
    5. 22 x 10,5
    6. 22 x 11
    7. 22 x 11,5

  • OFFSET RANGE

    OFFSET

    1. 10 - 54
    2. 14 - 60
    3. 0 - 35
    4. 20 - 64
    5. 10 - 46
    6. 11 - 54
    7. 17 - 61

  • MAX LOAD

    1. 980 KG
    2. 980 KG
    3. 980 KG
    4. 980 KG
    5. 980 KG
    6. 980 KG
    7. 980 KG

  • SUGGESTED RETAIL PRICE

    SRP

    1. 750 EUR
    2. 775 EUR
    3. 775 EUR
    4. 800 EUR
    5. 825 EUR
    6. 850 EUR
    7. 875 EUR

  • BOLT PATTERN

    1.
    2.
    3.
    4. ALL PCD`S BETWEEN 5x108 - 5x130
    5.
    6.
    7.

PCD OPTION:5x108 | 5x110 | 5x112 | 5x114.3 | 5x115 | 5x120 | 5x130

22" MAX LOAD PER WHEEL: 980 KG

We believe that different requirements deserve dedicated solutions. Our profiles have been carefully thought out to meet the tastes and needs of even the most demanding customers. Depending on the exact model and size, between 2 to 4 unique face profiles are available (from Performance to Extreme Concave), in different widths. This allows us to offer wheels for cars from nearly every segment. Be it a comfortable casual car, an elegant executive vehicle or a premium supercar, you can trust us to enhance its performance and appearance with appropriate wheels!

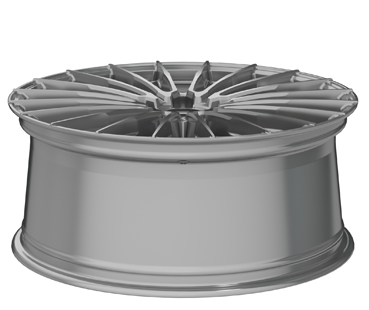

(1) PERFORMANCE CONCAVE

The least concave profile in our offer, designed for maximum brake clearance, which makes it appropriate even for larger brakes of top-quality supercars.

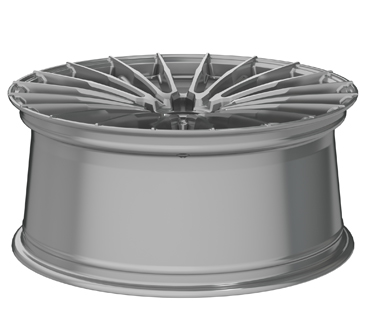

(2) MID CONCAVE

The middle ground between the near-flat wheels and deep concave wheels. Our Mid Concave profile is an ideal choice for those clients who are looking for the balance between subtlety and dynamism.

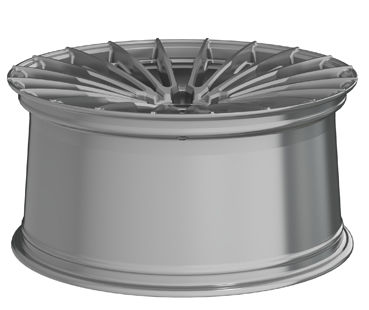

(3) DEEP CONCAVE

Deep Concave wheels are targeted at customers who want to give their car a dynamic and aggressive character. It’s the perfect choice for those of you want to fit in with the latest automotive trends.

HYBRID FORGED PROCESS

STEP I
Mounting of a specially prepared cast face to flow-forming drum and applying extensive heat.
STEP II
High-pressure rollers move down the barrel while applying pressure, stretching the wheel as a result.
STEP III
The process continues until the desired width and density of the barrel are acquired.
STEP IV
By compressing the properties of the wheel, we achieve a wheel that is lighter and yet offers a higher impact tolerance.
LEARN MORE FROM VIDEO

CVR10 IN DETAILS

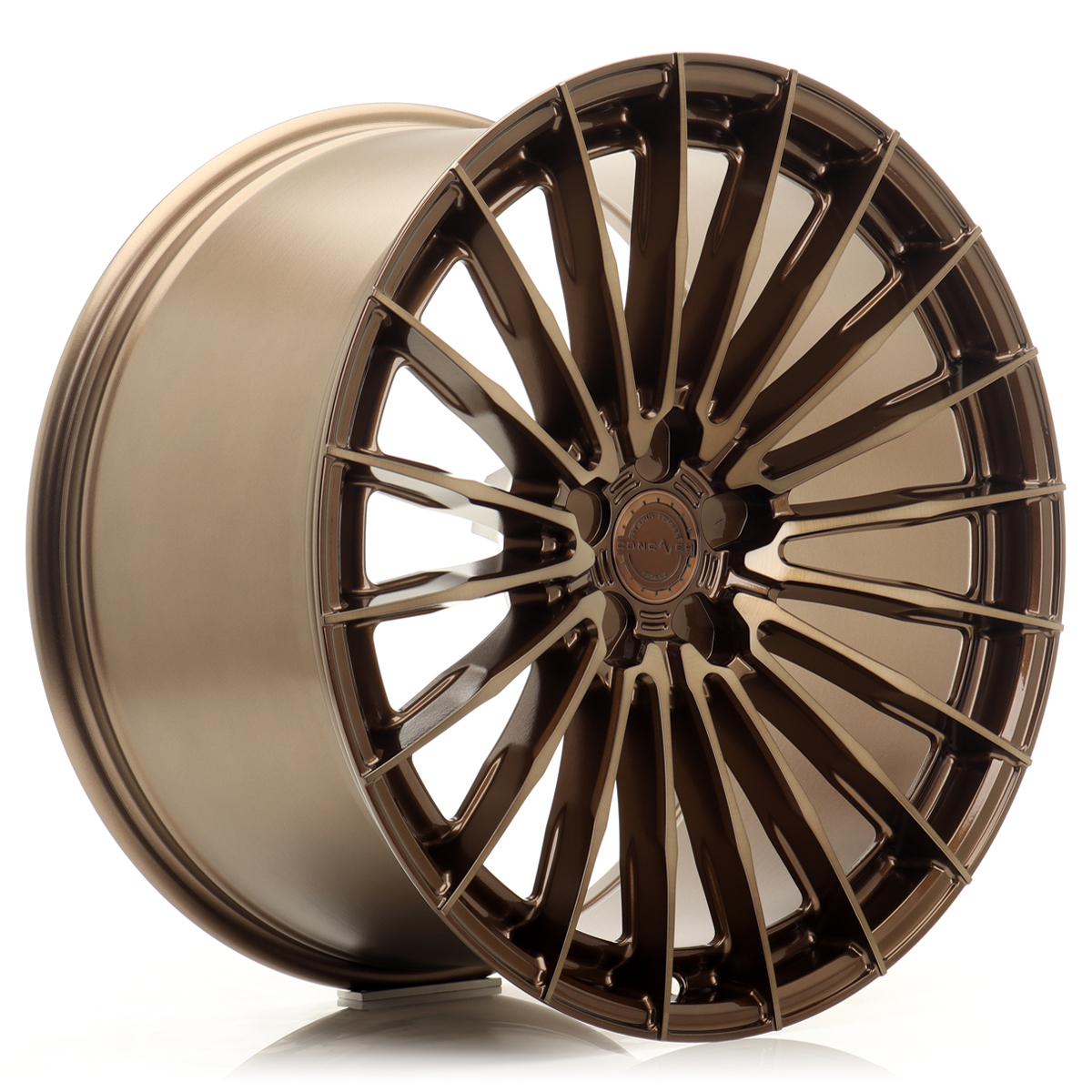

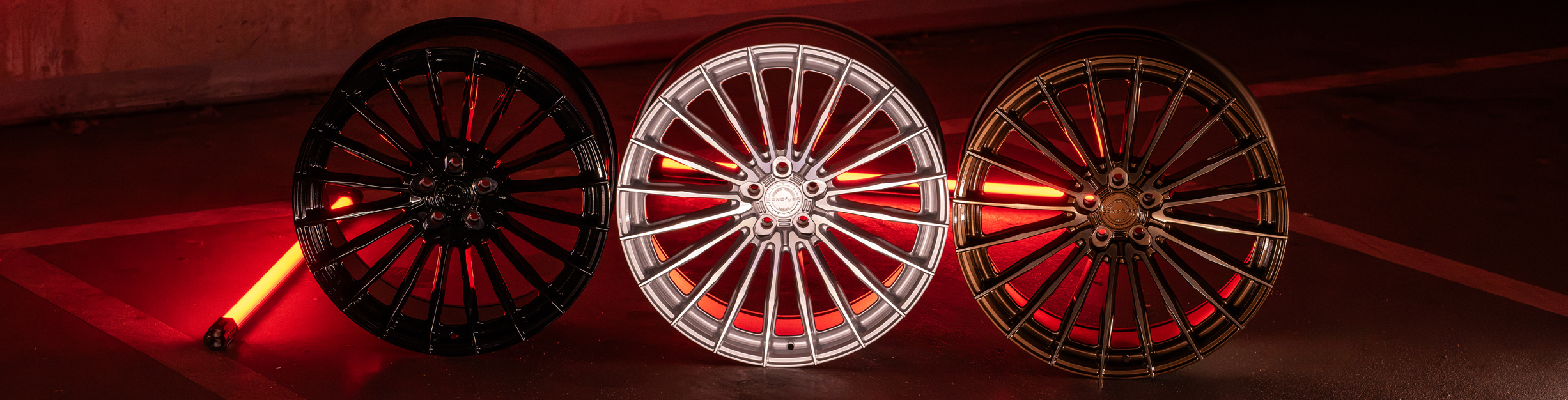

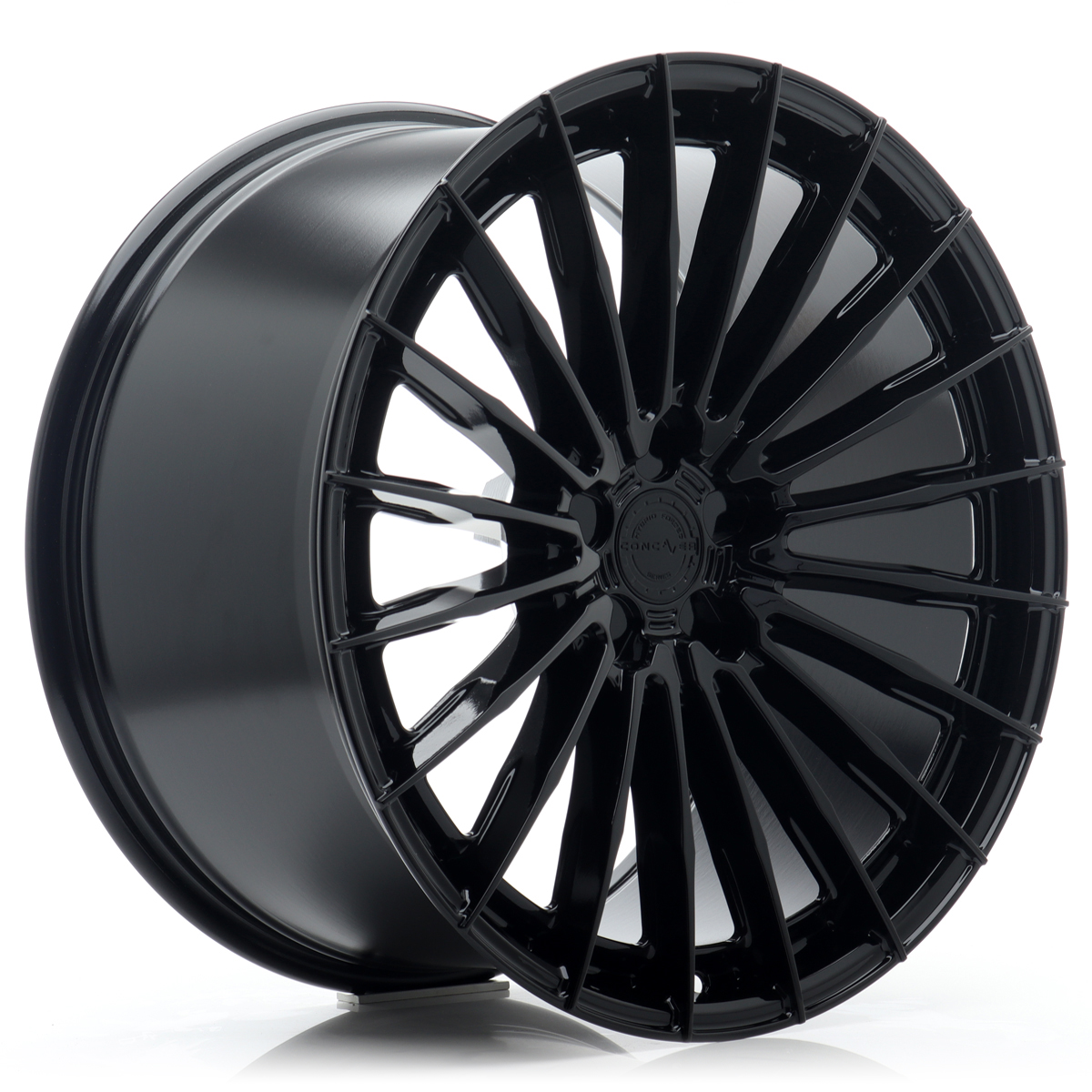

BRUSHED SILVER PLATINUM BLACK BRUSHED BRONZE
