THE CVR9

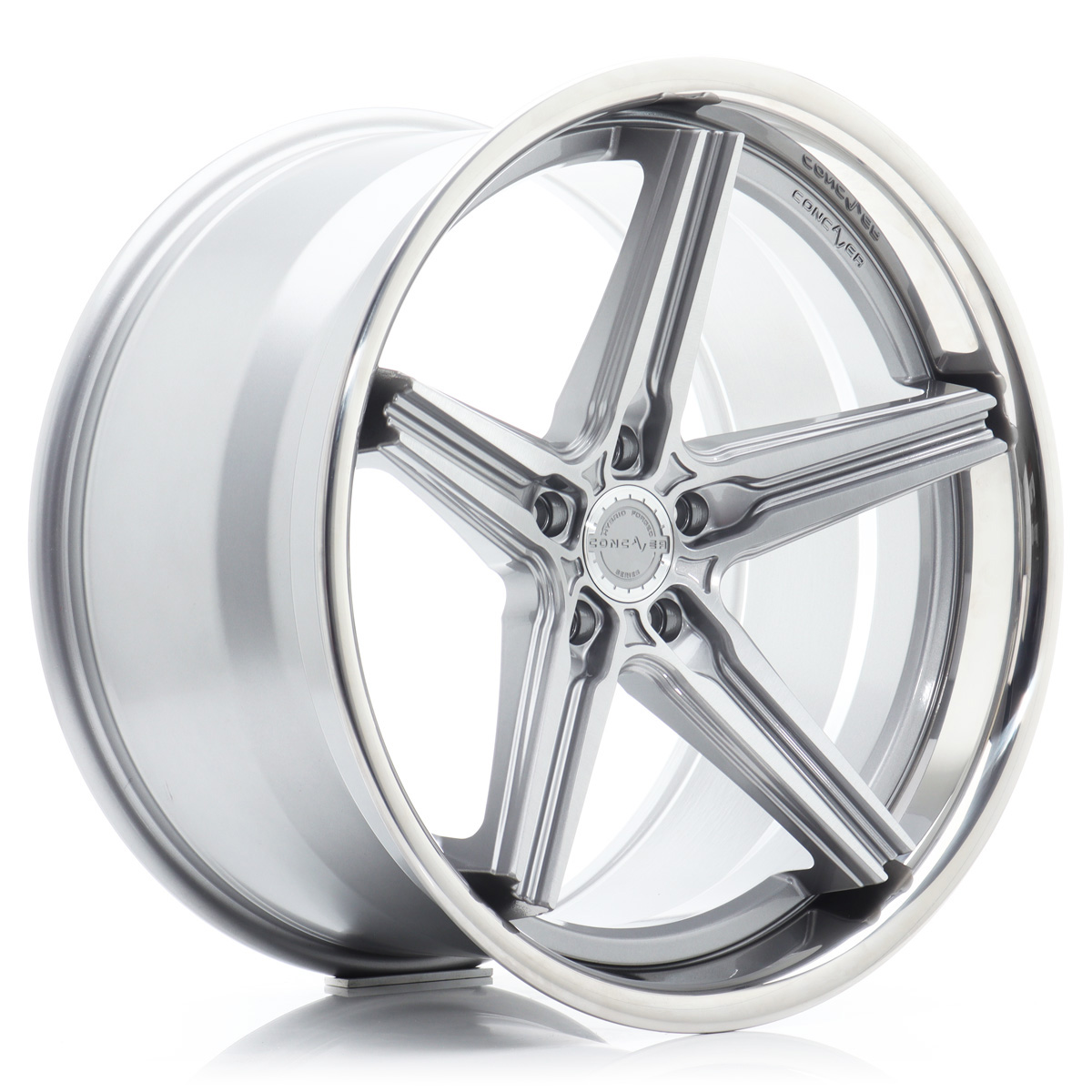

The CVR9 Wheel, with its distinctive look, luxurious finish, and the bold stainless steel lip, is bound to turn heads and make your car stand out in every situation. This dynamic wheel effortlessly combines style and performance, ensuring your ride is always ahead of the curve.

Choosing Concaver rims, you can be sure of their uniqueness.
Every Concaver model is officially patented in the European Union Intellectual Property Office.
You can verify it here.

STANDARD FINISHES

CVR9 TECHNICAL SPECIFICATION

At Concaver, we are well aware of the differences between specific car types and models. Having all the different parameters and details in mind, we go the extra mile to ensure that our wheels can be crafted to fit almost any car on the market. By utilising both the experienced workforce and the cutting-edge technologies available in Concaver wheel factory, we are able to offer custom-tailored solutions to guarantee a perfect fit on vehicle, regardless of its specification.

  • CHOOSE SIZE >

  • 19"
  • 20"
  • 21"

  • CONCAVE PROFILE

    CONCAVE

    1. PERFORMANCE
    2. PERFORMANCE
    3. PERFORMANCE
    4. DEEP
    5. DEEP
    6. DEEP

  • 3D

    3D

  • WHEEL SIZE

    SIZE

    1. 19 x 8
    2. 19 x 8,5
    3. 19 x 9
    4. 19 x 9
    5. 19 x 9,5
    6. 19 x 10

  • OFFSET RANGE

    OFFSET

    1. 20 - 42
    2. 20 - 48
    3. 20 - 54
    4. 20 - 32
    5. 20 - 38
    6. 15 - 44

  • MAX LOAD

    1. 725 KG
    2. 725 KG
    3. 725 KG
    4. 725 KG
    5. 725 KG
    6. 725 KG

  • SUGGESTED RETAIL PRICE

    SRP

    1. 425 EUR
    2. 450 EUR
    3. 475 EUR
    4. 475 EUR
    5. 500 EUR
    6. 525 EUR

  • BOLT PATTERN

    1.
    2.
    3.
    4. ALL PCD`S BETWEEN 5x108 - 5x130
    5.
    6.

PCD OPTION:5x108 | 5x110 | 5x112 | 5x114.3 | 5x115 | 5x120 | 5x130

19" MAX LOAD PER WHEEL: 815 KG

  • CONCAVE PROFILE

    CONCAVE

    1. PERFORMANCE
    2. PERFORMANCE
    3. PERFORMANCE
    4. DEEP
    5. DEEP
    6. DEEP
    7. DEEP
    8. EXTREME

  • 3D

    3D

  • WHEEL SIZE

    SIZE

    1. 20 x 8
    2. 20 x 8,5
    3. 20 x 9
    4. 20 x 9
    5. 20 x 9,5
    6. 20 x 10
    7. 20 x 10,5
    8. 20 x 10,5

  • OFFSET RANGE

    OFFSET

    1. 20 - 42
    2. 20 - 48
    3. 20 - 54
    4. 20 - 35
    5. 10 - 41
    6. 10 - 47
    7. 10 - 53
    8. 0 - 28

  • MAX LOAD

    1. 815 KG
    2. 815 KG
    3. 815 KG
    4. 815 KG
    5. 815 KG
    6. 815 KG
    7. 815 KG
    8. 815 KG

  • SUGGESTED RETAIL PRICE

    SRP

    1. 525 EUR
    2. 550 EUR
    3. 575 EUR
    4. 575 EUR
    5. 600 EUR
    6. 625 EUR
    7. 650 EUR
    8. 650 EUR

  • BOLT PATTERN

    1.
    2.
    3.
    4.
    5. ALL PCD`S BETWEEN 5x108 - 5x130
    6.
    7.
    8.

PCD OPTION:5x108 | 5x110 | 5x112 | 5x114.3 | 5x115 | 5x120 | 5x130

20" MAX LOAD PER WHEEL: 815 KG

  • CONCAVE PROFILE

    CONCAVE

    1. PERFORMANCE
    2. PERFORMANCE
    3. DEEP
    4. DEEP
    5. EXTREME
    6. DEEP
    7. DEEP

  • 3D

    3D

  • WHEEL SIZE

    SIZE

    1. 21 x 9
    2. 21 x 9,5
    3. 21 x 9,5
    4. 21 x 10,5
    5. 21 x 10,5
    6. 21 x 11
    7. 21 x 11,5

  • OFFSET RANGE

    OFFSET

    1. 10 - 52
    2. 14 - 61
    3. 0 - 35
    4. 10 - 46
    5. 0 - 10
    6. 11 - 55
    7. 17 - 59

  • MAX LOAD

    1. 900 KG
    2. 900 KG
    3. 900 KG
    4. 900 KG
    5. 780 KG
    6. 900 KG
    7. 900 KG

  • SUGGESTED RETAIL PRICE

    SRP

    1. 650 EUR
    2. 675 EUR
    3. 675 EUR
    4. 725 EUR
    5. 725 EUR
    6. 750 EUR
    7. 775 EUR

  • BOLT PATTERN

    1.
    2.
    3.
    4. ALL PCD`S BETWEEN 5x108 - 5x130
    5.
    6.
    7.

PCD OPTION:5x108 | 5x110 | 5x112 | 5x114.3 | 5x115 | 5x120 | 5x130

21" MAX LOAD PER WHEEL: 780 KG/900 KG

We believe that different requirements deserve dedicated solutions. Our profiles have been carefully thought out to meet the tastes and needs of even the most demanding customers. Depending on the exact model and size, between 2 to 4 unique face profiles are available (from Performance to Extreme Concave), in different widths. This allows us to offer wheels for cars from nearly every segment. Be it a comfortable casual car, an elegant executive vehicle or a premium supercar, you can trust us to enhance its performance and appearance with appropriate wheels!

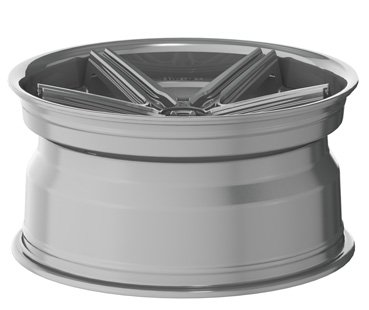

(1) PERFORMANCE CONCAVE

The least concave profile in our offer, designed for maximum brake clearance, which makes it appropriate even for larger brakes of top-quality supercars.

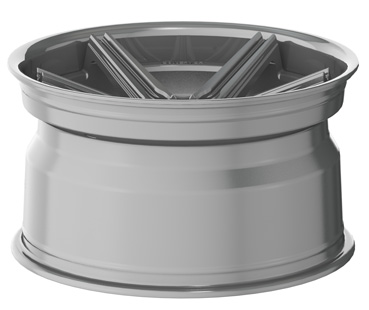

(3) DEEP CONCAVE

Deep Concave wheels are targeted at customers who want to give their car a dynamic and aggressive character. It’s the perfect choice for those of you want to fit in with the latest automotive trends.

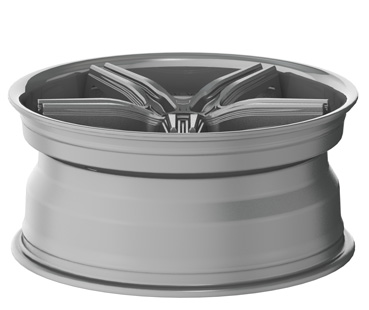

(4) EXTREME CONCAVE

The most dynamic of our profiles, Extreme Concave, will give your car a unique, sporty and aggressive character, without compromising on elegance and stylish appeal.

HYBRID FORGED PROCESS

STEP I
Mounting of a specially prepared cast face to flow-forming drum and applying extensive heat.
STEP II
High-pressure rollers move down the barrel while applying pressure, stretching the wheel as a result.
STEP III
The process continues until the desired width and density of the barrel are acquired.
STEP IV
By compressing the properties of the wheel, we achieve a wheel that is lighter and yet offers a higher impact tolerance.
LEARN MORE FROM VIDEO

CVR9 IN DETAILS

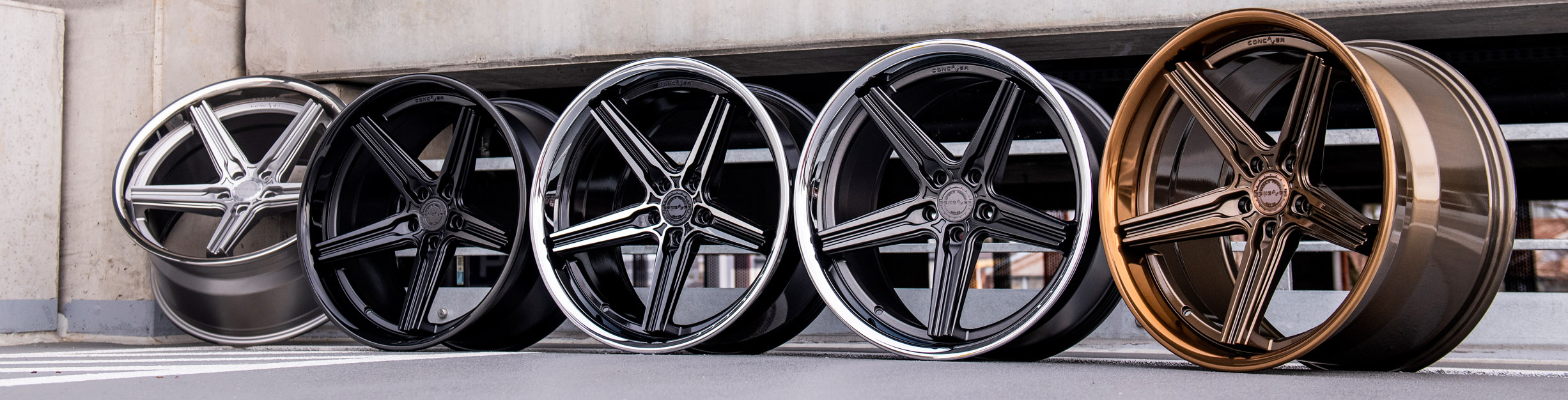

BRUSHED TITANIUM CARBON GRAPHITE BLACK DIAMOND CUT GLOSSY BRONZE MATT BLACK
